Hardware Restart

If you experience a problem with the system, you may need to restart the hardware. You can restart the following system components from the TracPhone V3-HTS web interface:

• Restart Antenna – Restarts the TracPhone V3-HTS antenna. Choose this option whenever the antenna is unable to find the satellite.

• Restart MTA – Restarts the MTA (multimedia terminal adapter), which is built into the ICM. Choose this option whenever voice calls are not working properly while the system is online.

• Restart All – Restarts the entire system. Choose this option if the problem cannot be isolated to an antenna or MTA issue.

To restart a system component, follow these steps:

1. At the TracPhone V3-HTS web interface, click the Support tab.

2. On the Restart Hardware menu, click the desired option.

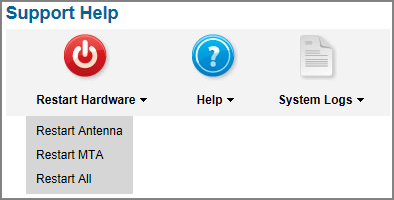

Restart Hardware Menu



3. At the confirmation message, click Restart Antenna, Restart MTA, or Restart ALL.
