Open Access HTS Configuration

In an Open Access HTS configuration, Ethernet port 1 provides unlimited Internet access, and Ports 2 and 3 and the built-in WAP provide high-speed Internet access, with no user logins or controls. Port 4 is reserved for an optional KVH service such as Global Static IP.

This configuration is identical to the Static IP HTS configuration, but without access control.

Open Access HTS Configuration

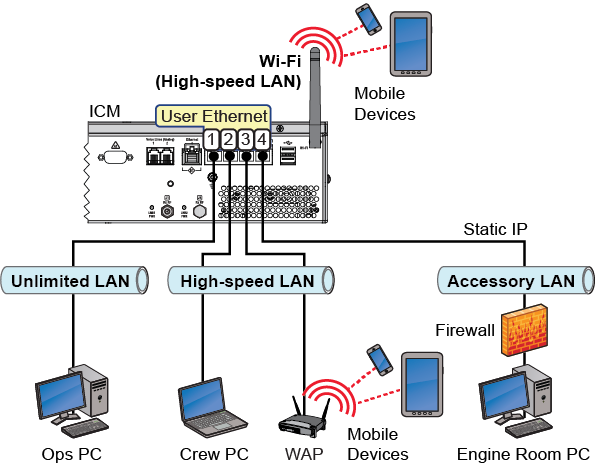

Open Access HTS Configuration Wiring Example


For details on setting up the Unlimited LAN and High-speed LAN, refer to Standard HTS Configuration, except disregard setting up user names/passwords and data allocations.

For details on setting up a Static IP address, refer to Static IP HTS Configuration.
